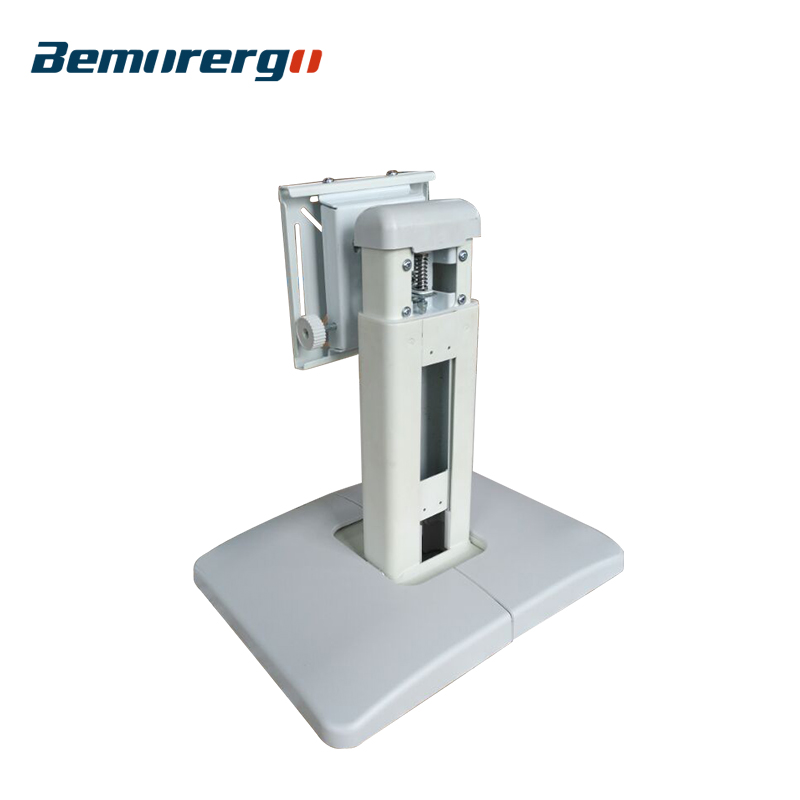

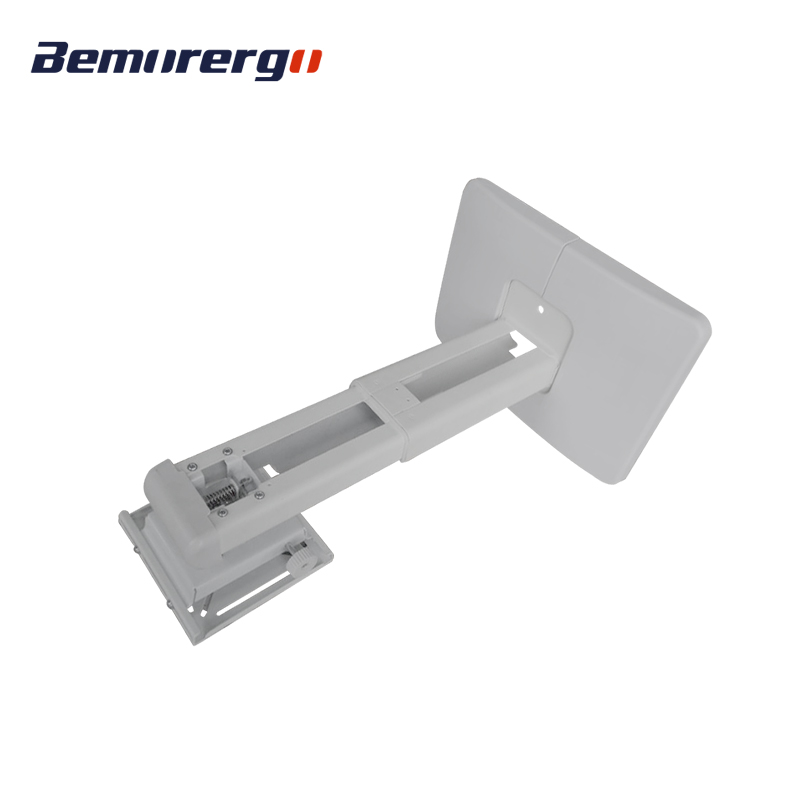

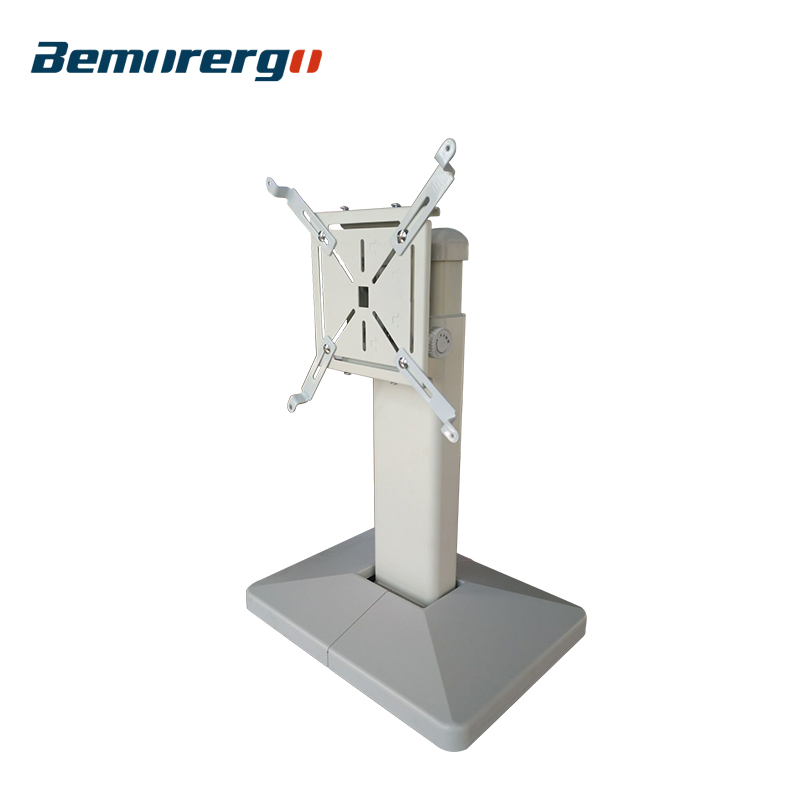

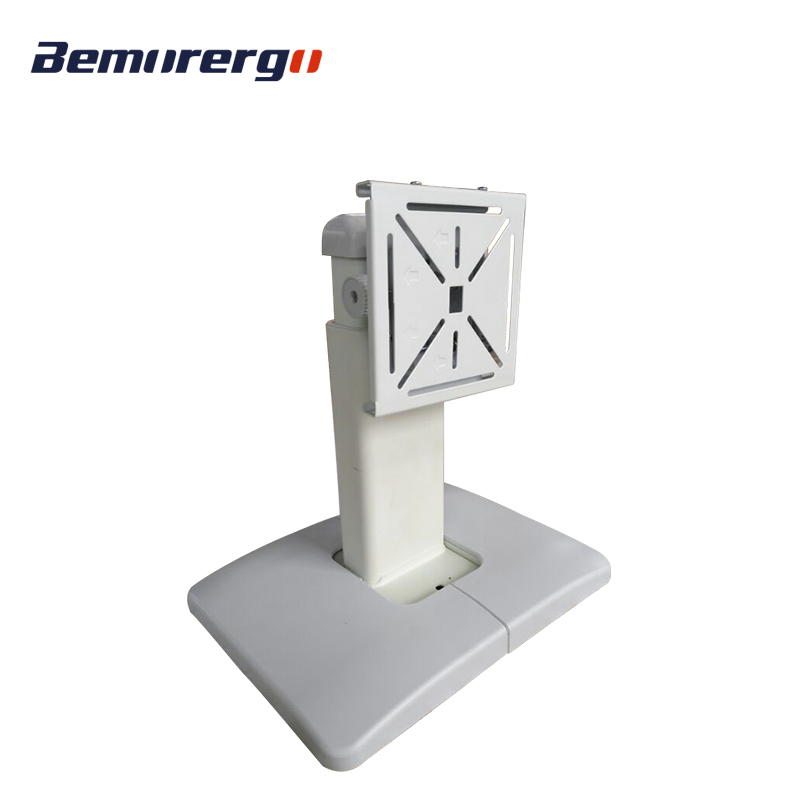

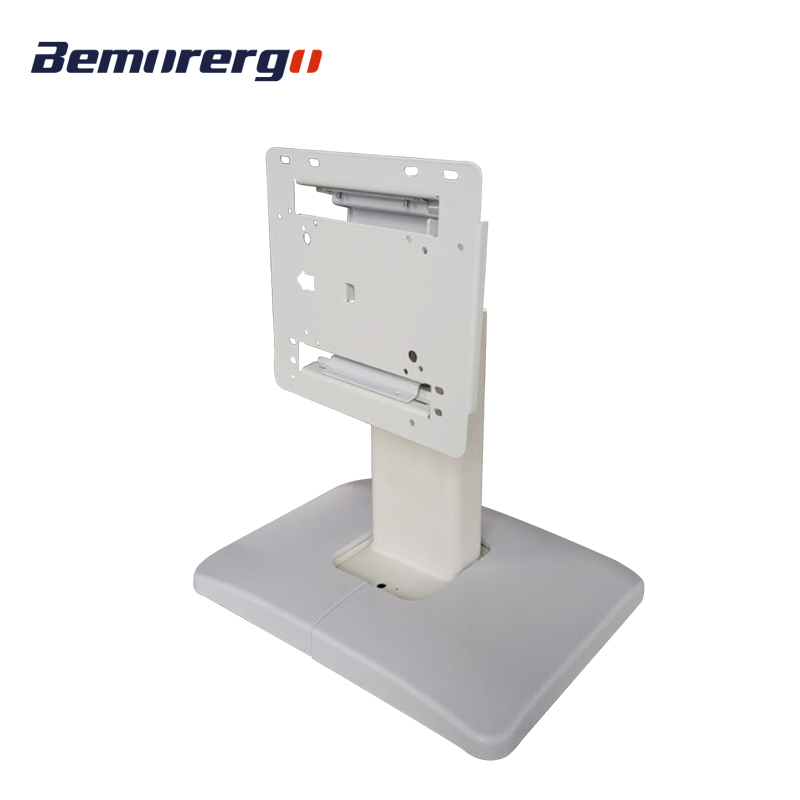

Three knob fine - tuning(spring) Projector Cantilever Bracket WSD-TXC

Fine-tuning projector short focus cantilever bracket, specially designed for all kinds of laser projector.  Laser projectors use laser beams to transmit images.  The optical components of laser projector mainly consist of red, green and blue tri-color light valve, combined beam X prism, projection lens and drive light valve.  With this matching laser projector bracket is the use of three knobs horizontal, vertical, horizontal three direction adjustment, so that the laser projector to adjust the focal length to the curtain more convenient, complete the whole laser focus process.

DESCRIPTION:
Share
TAG:
projector mount/wall mount

technical specification


technical specification

1.5mmSPCC steel with powder coating

AIO

Adjusting way



Three - knob trimmer type adjustment

Einstell-Richtung



up and downaroundstandard

Scalable

YES

Suitable

Casio, Changhong, Hisense, NEC,Appotronics, PROPIX, SONY, Epson, Optoma, Soto, SEEMILE,hitevision, Hitachi, Benq, DET, etc

Bottom cover size

36×27cm

Cantilever generous

10.5×5cm

Cantilever diameter

5cm

Cantilever size

The gap between internal and external telescopic pipes is less than or equal to 0.1mm

 surface treatment

Pickling phosphating + electrostatic spraying

specification

model

adjustable range

load

NW/GW

Steel pipe specification

package(1pc)

0.3m

WSD-TXC03

26-50cm

28kg

3.6/5kg


37×18×28cm

0.5m

WSD-TXC05

36-64cm

25kg

4.5/5.5kg


44.5×18×28cm

0.8m

WSD-TXC08

55-100cm

22kg

5.5/6.5kg


66×18×28mm

1.2m

WSD-TXC12

66-120cm

20kg

6.1/7.4kg


71×18×28cm

1.5m

WSD-TXC15

75-150cm

18kg


inner785mm outside755mm

87×18×28cm

 price: USD 25.78~ USD 31.25

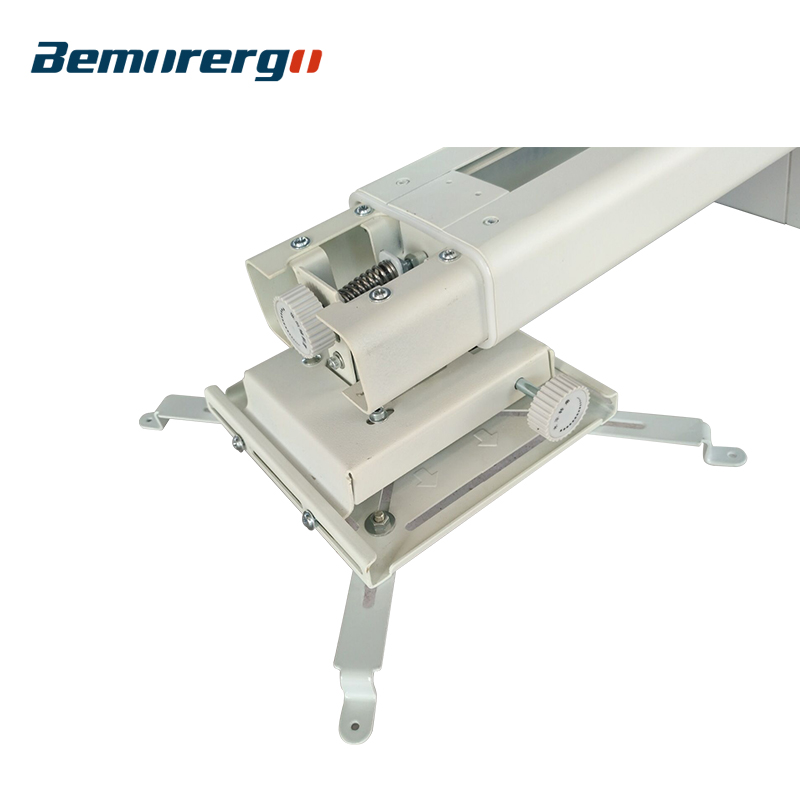

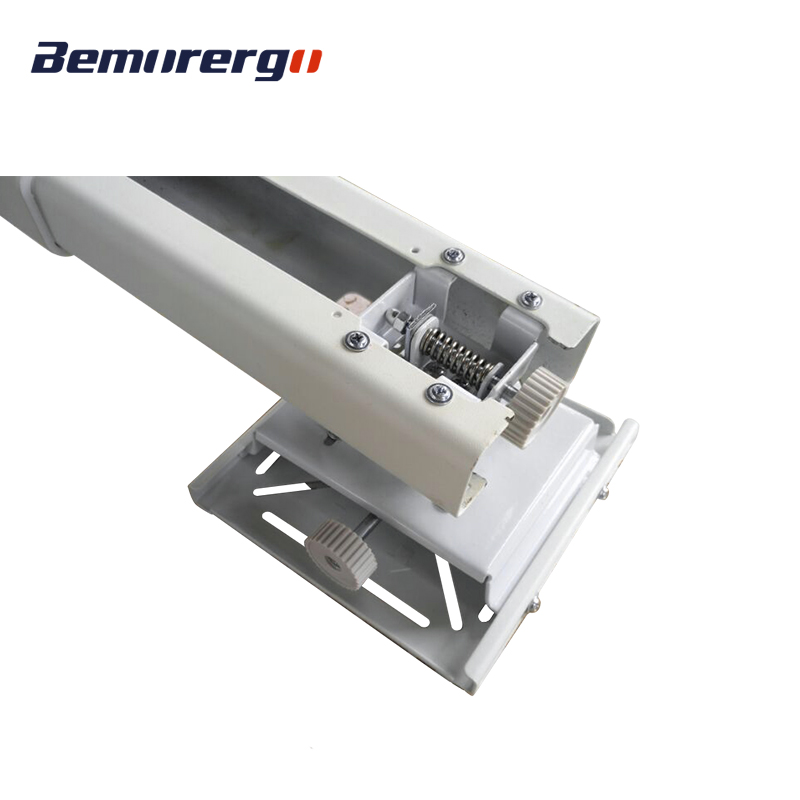

1. In order to solve the laser projector focal length adjustment time-consuming, laborious, technical difficulties.  Adopt humanized design, developed this section of cantilever bracket, up and down, left and right, horizontal adjustment all use knob adjustment, simple, convenient, easy.

2. Cantilever bracket body adopts profile structure design, which greatly enhances its bearing capacity, improves the overall stability, and overcomes the traditional cantilever bracket. After using for a period of time, the projector has the phenomenon of "falling".  In addition, the combination of inner and outer tube, using a special structure, the adjustment range of inner and outer tube greatly increased.

3. The cantilever bracket base adopts the frame structure design and the wall contact area is large, the fixed point increases, to overcome the traditional cantilever bracket after using for a period of time, and the wall joint loosens the phenomenon.

4 table with electrostatic spray, beautiful and generous appearance, good anti-corrosion performance.

5. In order to meet the requirements of different projector installation size, we can assemble all kinds of projector connecting plate (such as Casio, Changhong, Hisense, NEC, Appotronics, PROPIX, SONY, Epson, Optoma, etc.), and also can assemble universal connecting plate miter connecting plate.
