model

load

485 TelecontrolIn-terface

Winder

WSD-HZJ

35kg

√

×

WSD-HZJR

√

other parameters

Material

steel

Dimensions

400×120×160mm(长×宽×高)

node number

6

stroke

1m,1.5m,2m,3m

Limit device

electronic telecontrol

trace

Bar in line， power line，video line，reticle、VGA  etc.

Roof size

General 48×48cm，increase 55×55cm,60×60cm

electrical machinery

Tubular motor 30N

About tubular motor functions: 1. Third stroke point; 2. Point fine tuning; 3. Stop when confronted with obstacles; 4. The reversing; 5. A remote control can control up to 20 motors; 6. Debug sound response

 shutheight(Including decorative top)

1m:1100mm；1.5m:1200mm；2m:1500mm；3m：1800mm

About the total height of the hanger: total height = pipe closure height + box height

If the distance between the ceiling and the roof is greater than or equal to the closing height (including the decorative roof), decorative panels can be used to hide the projector

accessories

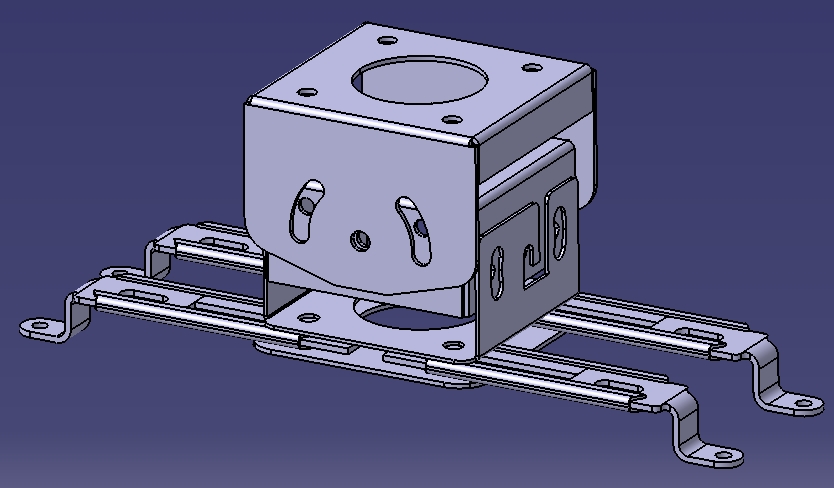

Common projector connector

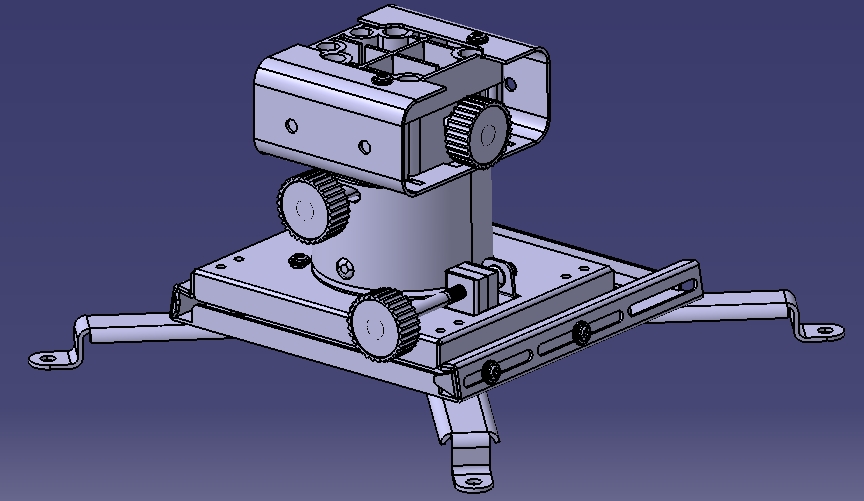

Fine-tune the projector connector

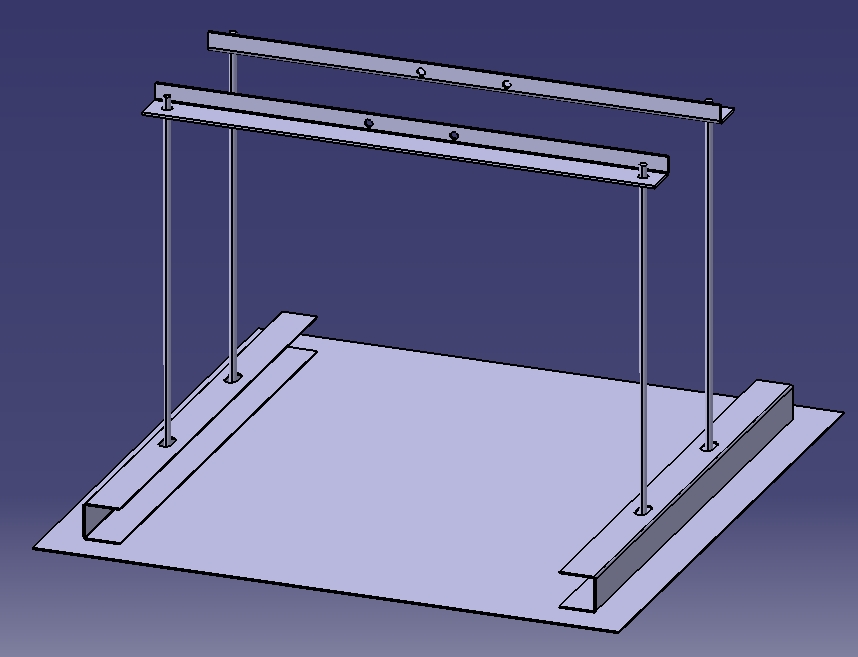

decoration panel
